Race lane draws using ResultsHQ and RaceHQ

Setting up lane draws (Race Lane data)

You may want to create an event where all your lanes have predetermined athletes in lanes. This will be based on athletes that have been nominated for that age gender event.

To do this follow these steps:

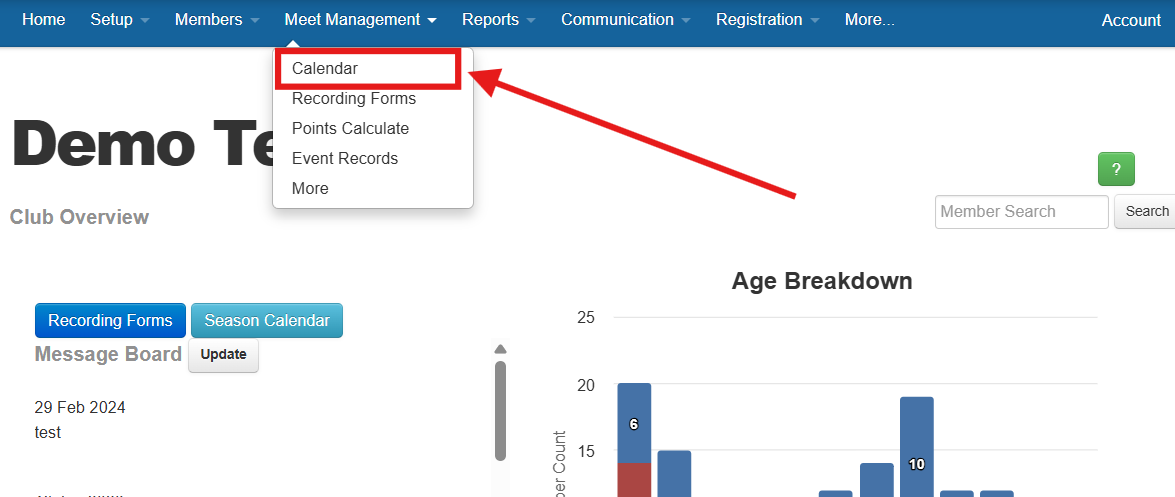

1. Go to Meet Management - Calendar

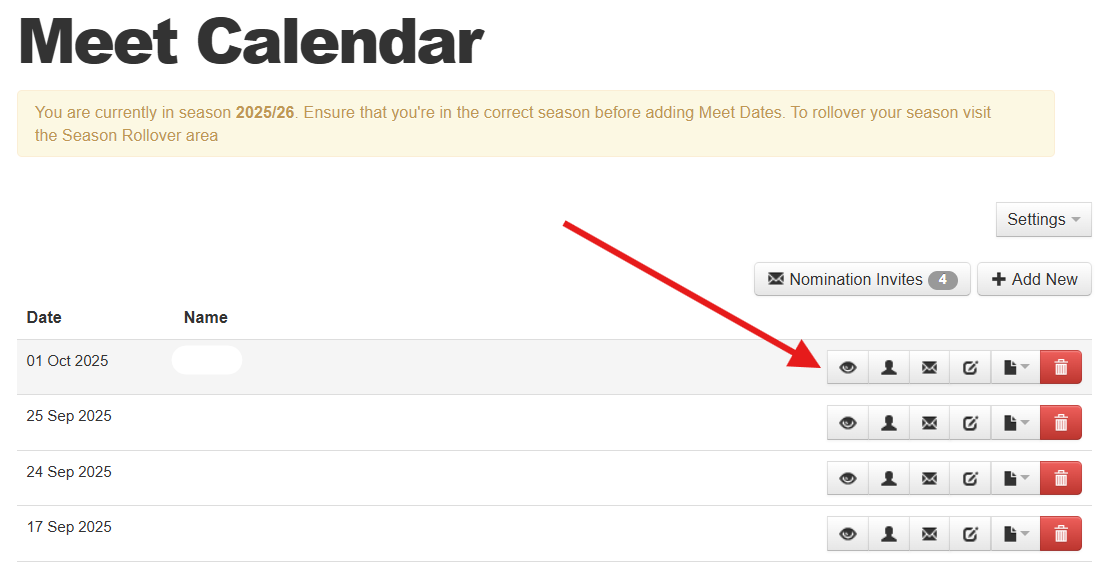

2. Click on View for that date

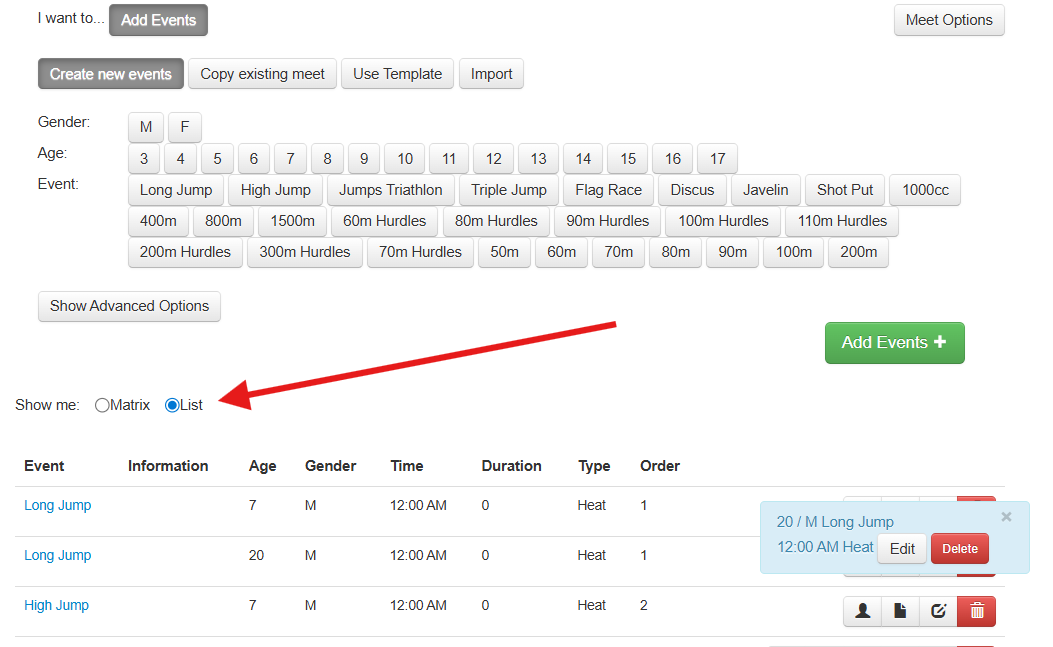

3. Click on the List view

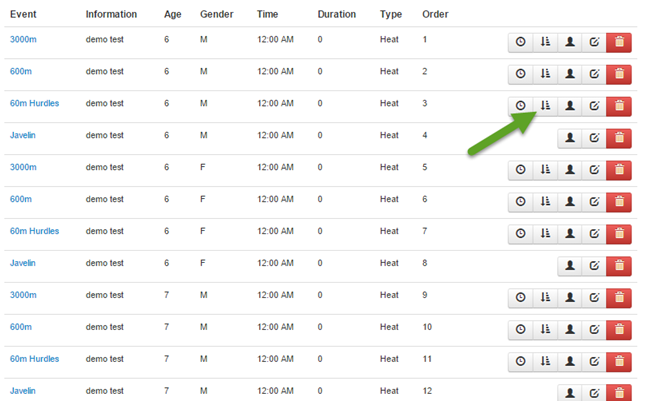

4. The Race Lane set-up will be available for all track events. If it has already been set up it will have a tick next to it. Otherwise, click on the Race Set up button

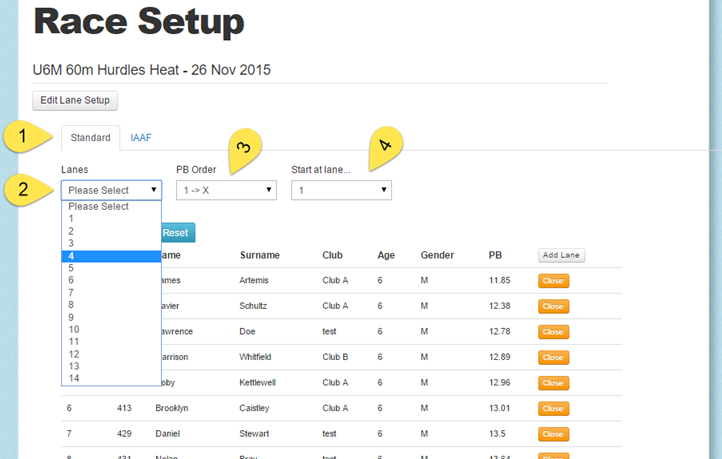

5. You can choose the number of lanes you want for this age-gender event and what lane number you wish to start from (swimming can start from lane zero). You can also let the PB results from these athletes sort them into ranked races.

5. Then if you are happy with your order press to save. Otherwise, drag and drop athletes into a new order or into other races. You can even close an athlete out of that race if you need to.

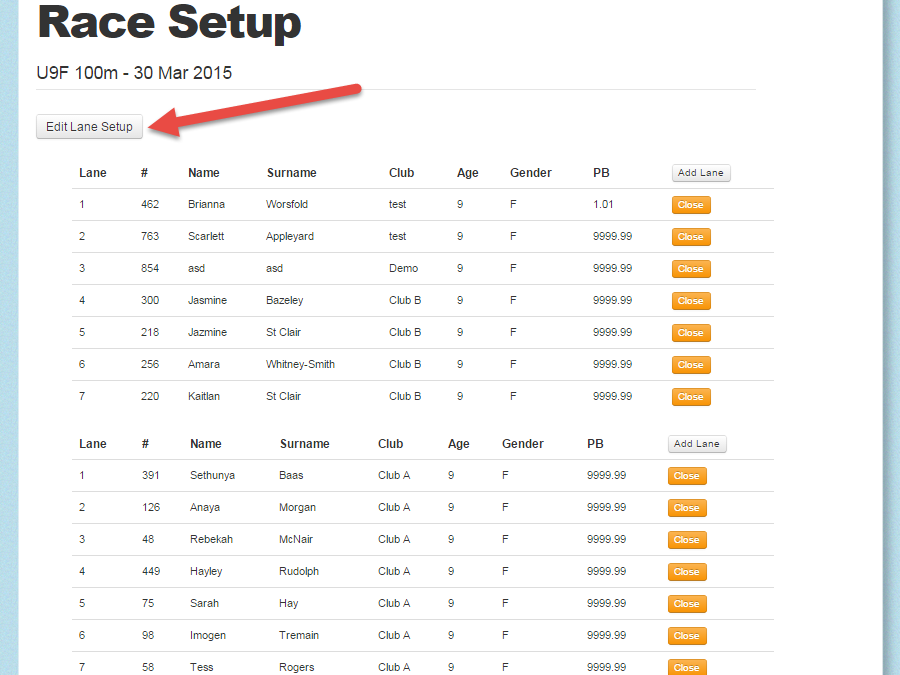

6. If you need to edit the Race Lane set-up at any point, just click on the Edit button. Note the PB value of 9999.99 is for athletes who do not have a PB value. This is how the display needs to be.

13. Enabling Race Lane data in RaceHQ

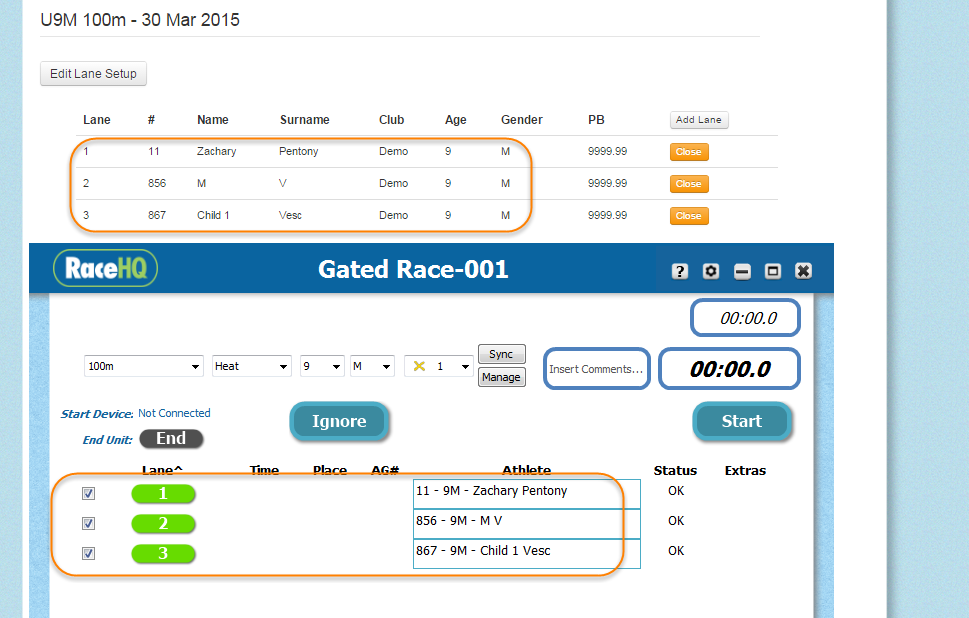

Want to see some cool magic happen. This function gives you the ability to read the race lane data into the race screen, race by race.

1. Start up the application and go to settings and select Use ResultsHQ Setup List

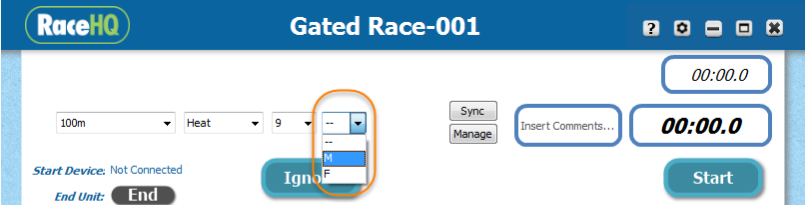

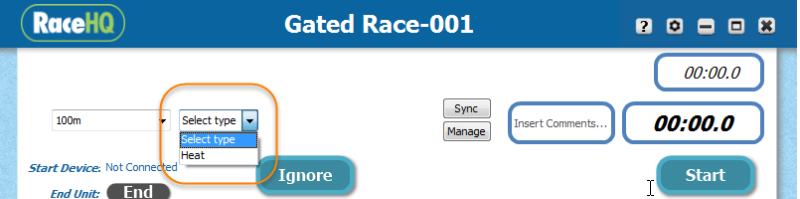

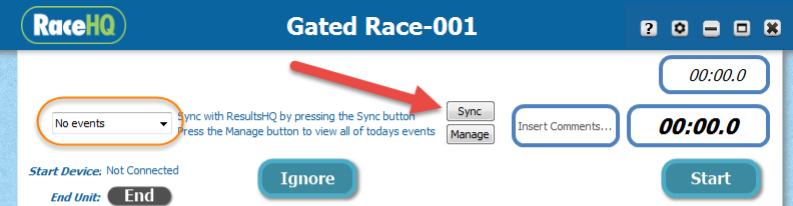

2. Set up your gates and start device/s and then continue to the race screen. Note the "No Events" in the drop-down on the left. This means you have not yet synced to get this data. Press the Sync button to update your event list
