Trolley Assembly

Here are a few steps to help you assemble your Timing Solutions trolley...

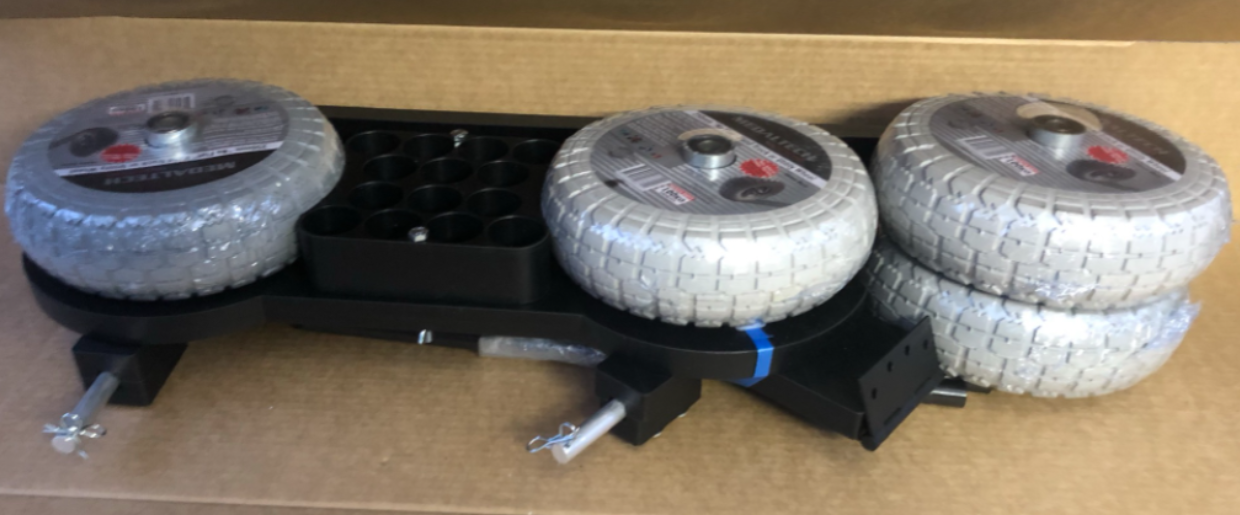

1. You will receive the parts to your trolley in a box. They will be packaged such as below:

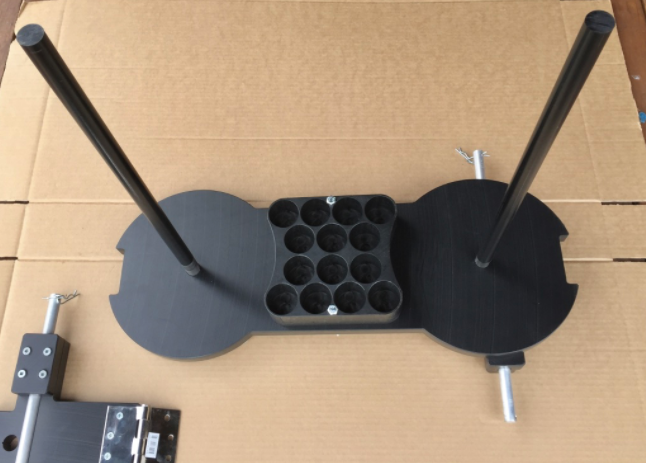

2. Take the 2 poles and the screws in the plastic sleeve and pop the longer pole into the hole with no axel - let it stick out the other side about an inch - this is where the T-bar will connect and the shorter pole in the hole with the axel.

3. Take the Steering T-bar. Face the hinge end away from the trolley base.

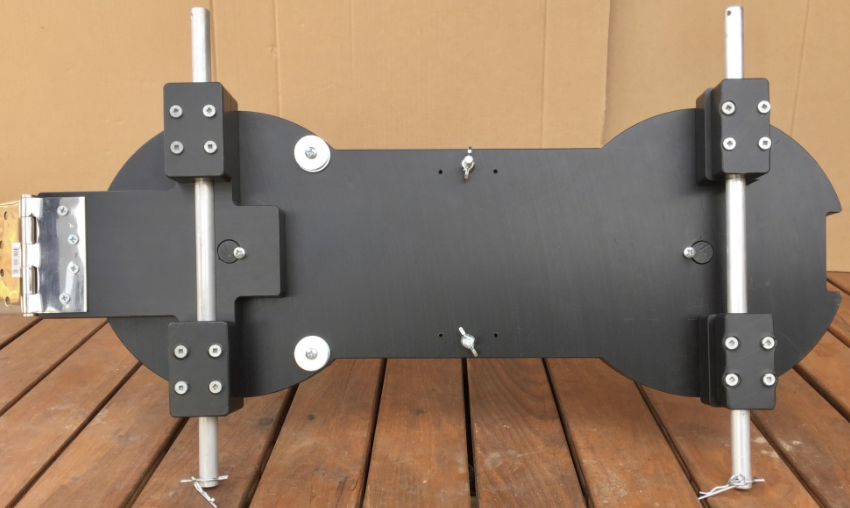

Turn the trolley on the side with the underside of the trolley facing you and the poles away from you..

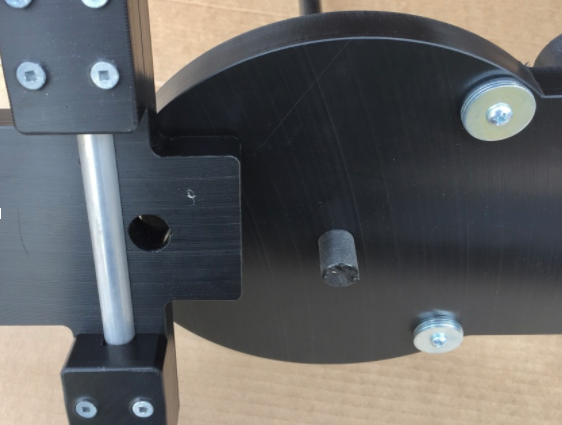

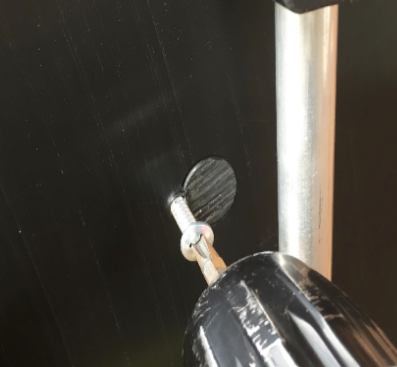

Place the T-bar to the trolley base and have the hole aligned to where the pole is and let the pole connect to the T-bar. Take one of the screws and drill it in - there will be a small notch in the hole for the screw to be placed. Do the same to the other hole with the pole.

4. Take your handle and unscrew the screws to reattach them to the trolley.

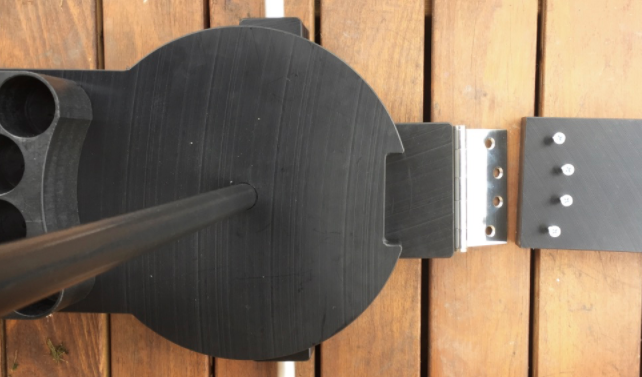

Place the trolley down again and open out the hinge so that the holes align with the holes on the handle.

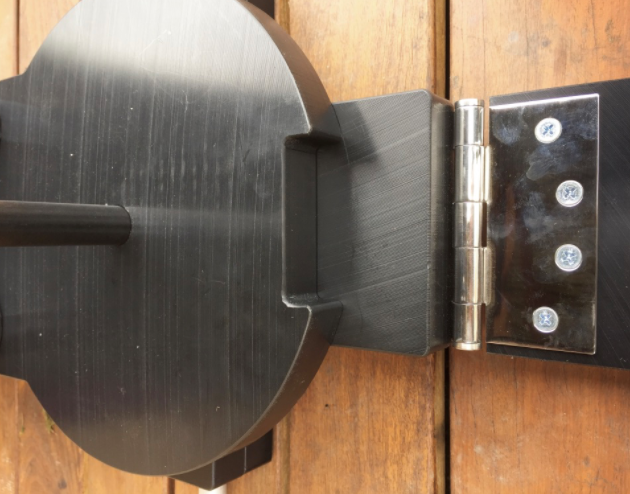

And screw all four in!

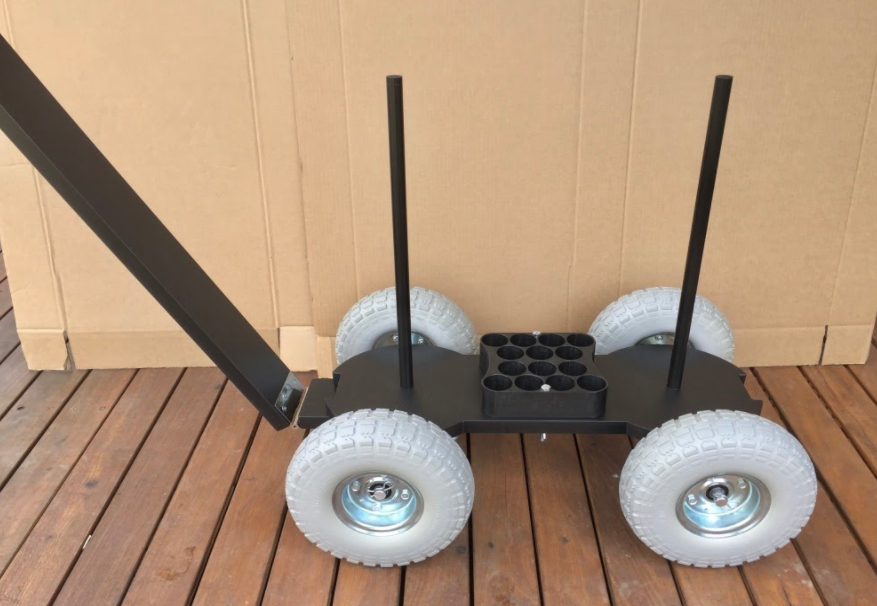

 5. Then attach the wheels using the four R clips provided
