Timing Solutions Hardware Integration Diagram

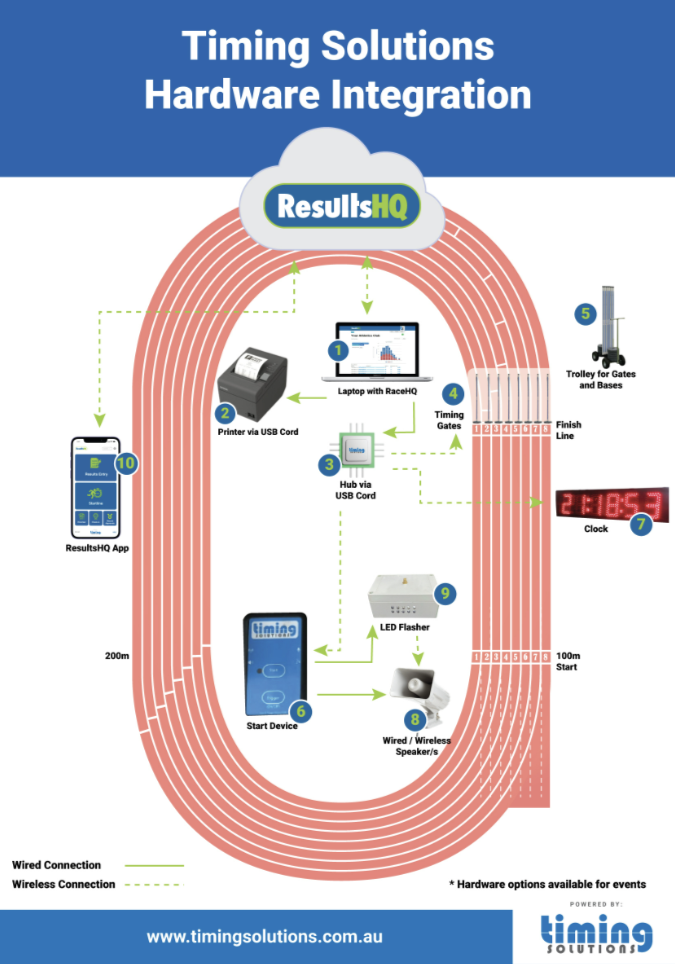

Below is a diagram that:

1. Illustrates how Timing Solutions products integrate; and
2. Highlights our current hardware options.

Please note: Solid green lines  indicate a wired connection, while dotted green lines represent a wireless connection.

Products:

1. Laptop with RaceHQ - RaceHQ - Latest Timing Software Download and Setup videos – Timing Solutions Support Forum
2. Printer via USB Cord from Laptop
3. Hub via USB cord from Laptop (required for Timing Gates, Starter, Speaker, LED Flasher & Clock)
4. Timing Gates
5. Trolley to store and move Timing Gates & Hubs
6. Start Device
7. Clock
8. Wired or Wireless Speakers (Wireless requires a LED Flasher)
9. LED Flasher (to show a race start from distance and / or required for wireless speakers)
10. ResultsHQ Mobile App (Incl. Results Entry & Startline functionality) - ResultsHQ Mobile App Summary – Timing Solutions Support Forum
