New Start Speaker Mount

This mount is designed such that you can securely attached a Timing Solutions speaker/horn to a standard speaker stand.

You are able to attach a single speaker, or two speakers if using the extra double speaker attachment

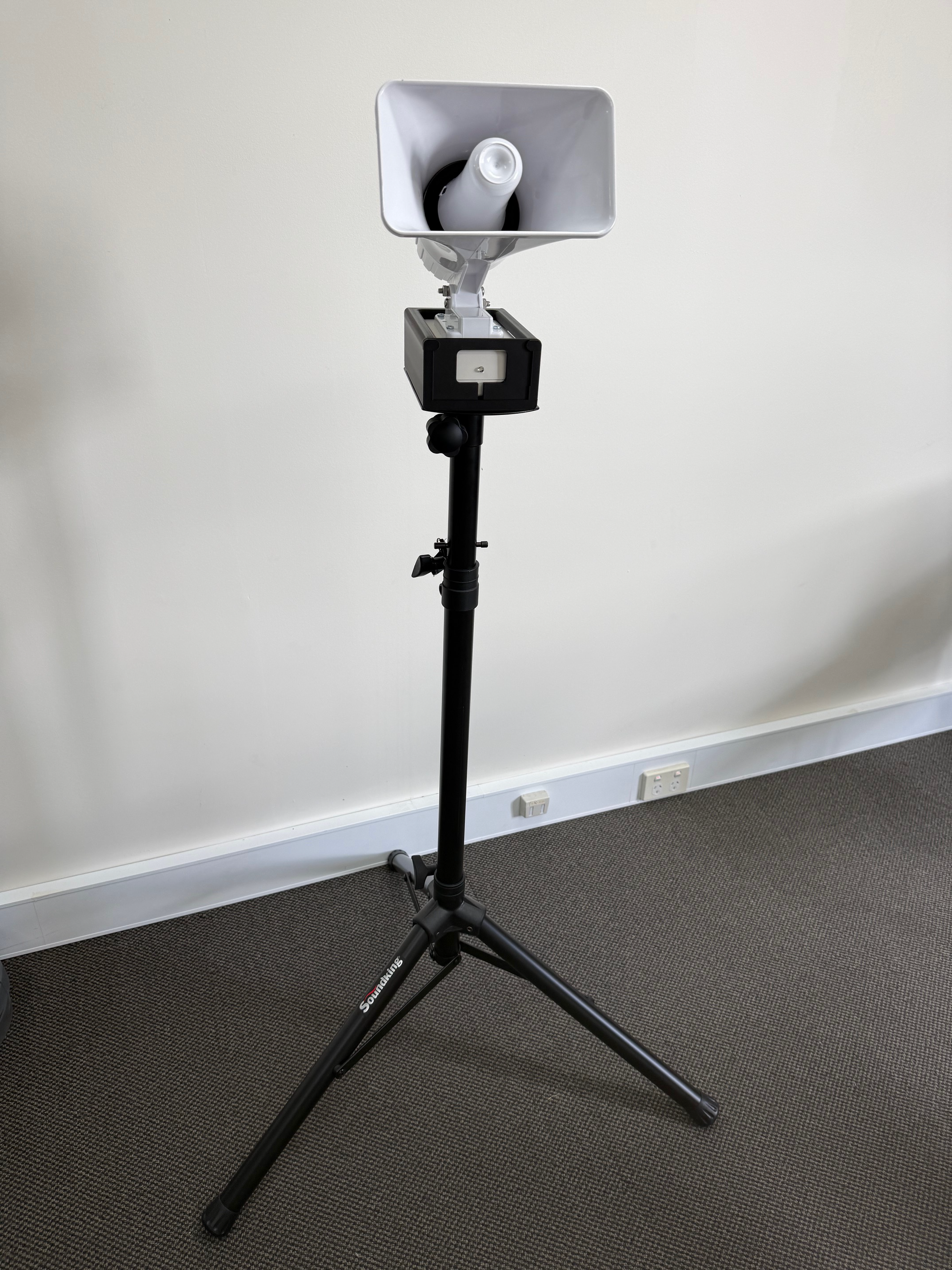

The above picture shows a single speaker mounted to an tripod.

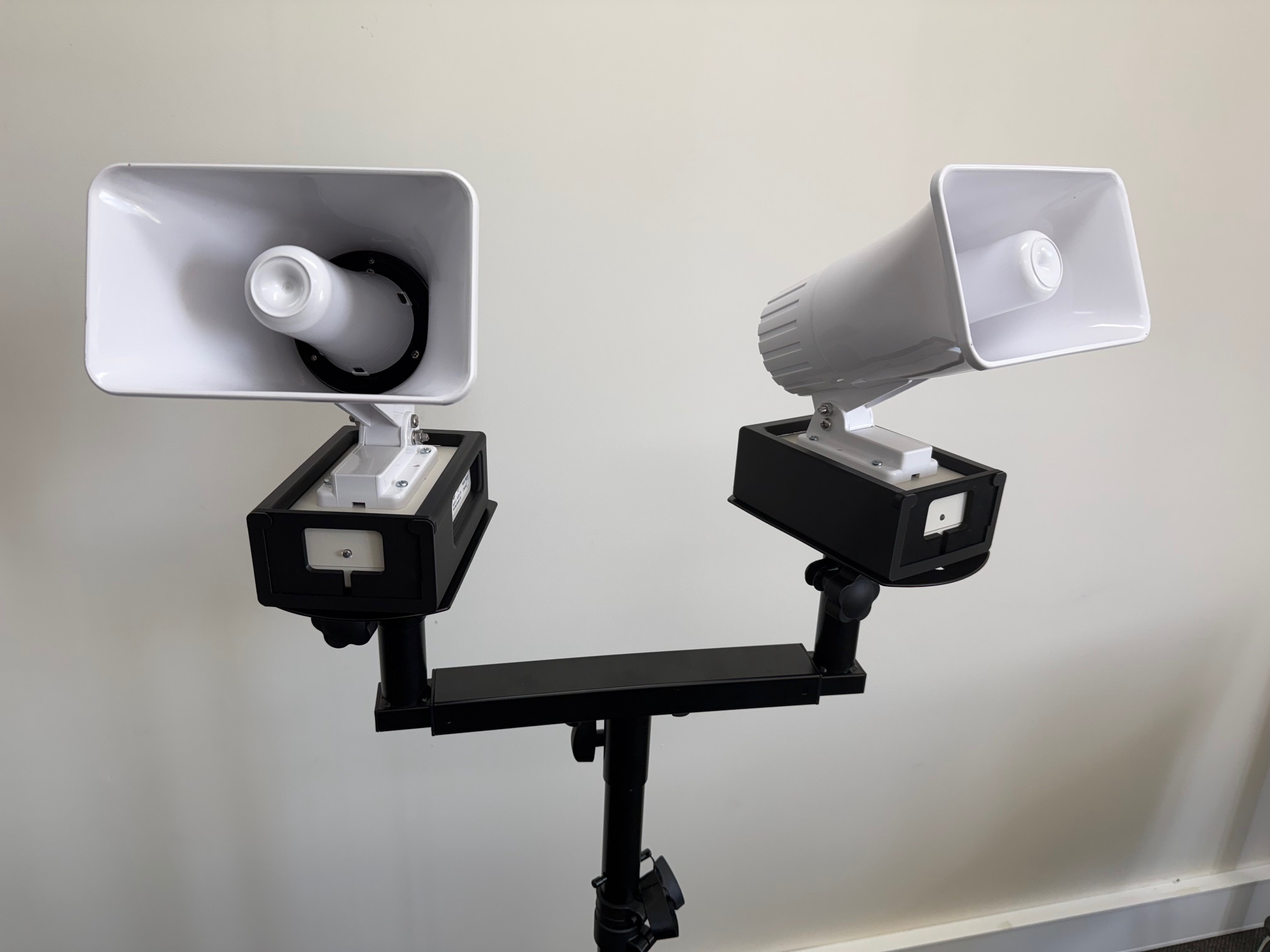

The above picture shows two speakers mounted via a double speaker adaptor. You are able to change the orientiation of each speaker independently which is great for events that have a stagger. By directly them correctly the starting bang is loud enough for athletes at different locations

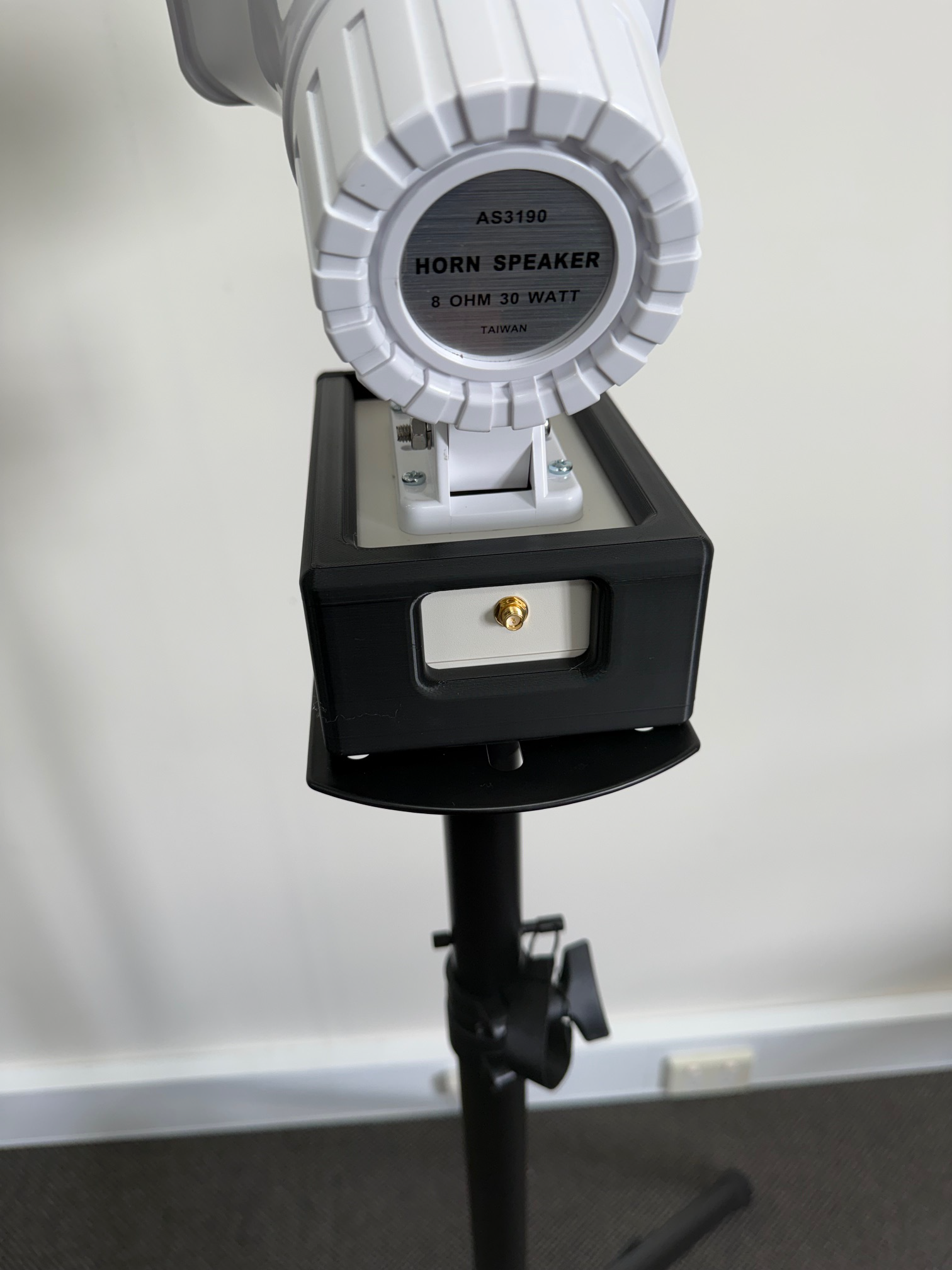

If you are using wireless speakers, the antenna can be inserted via the rear of the mount

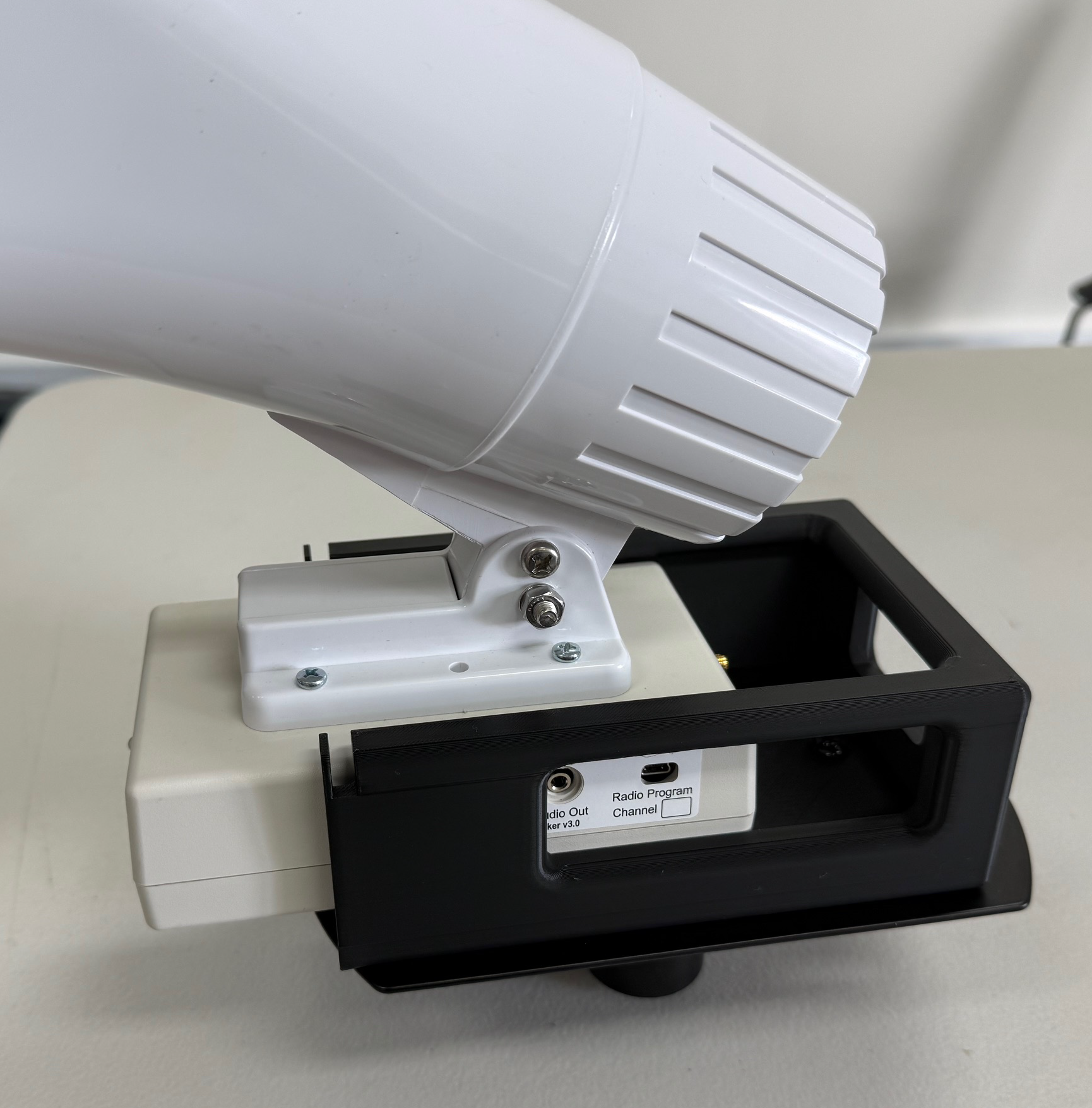

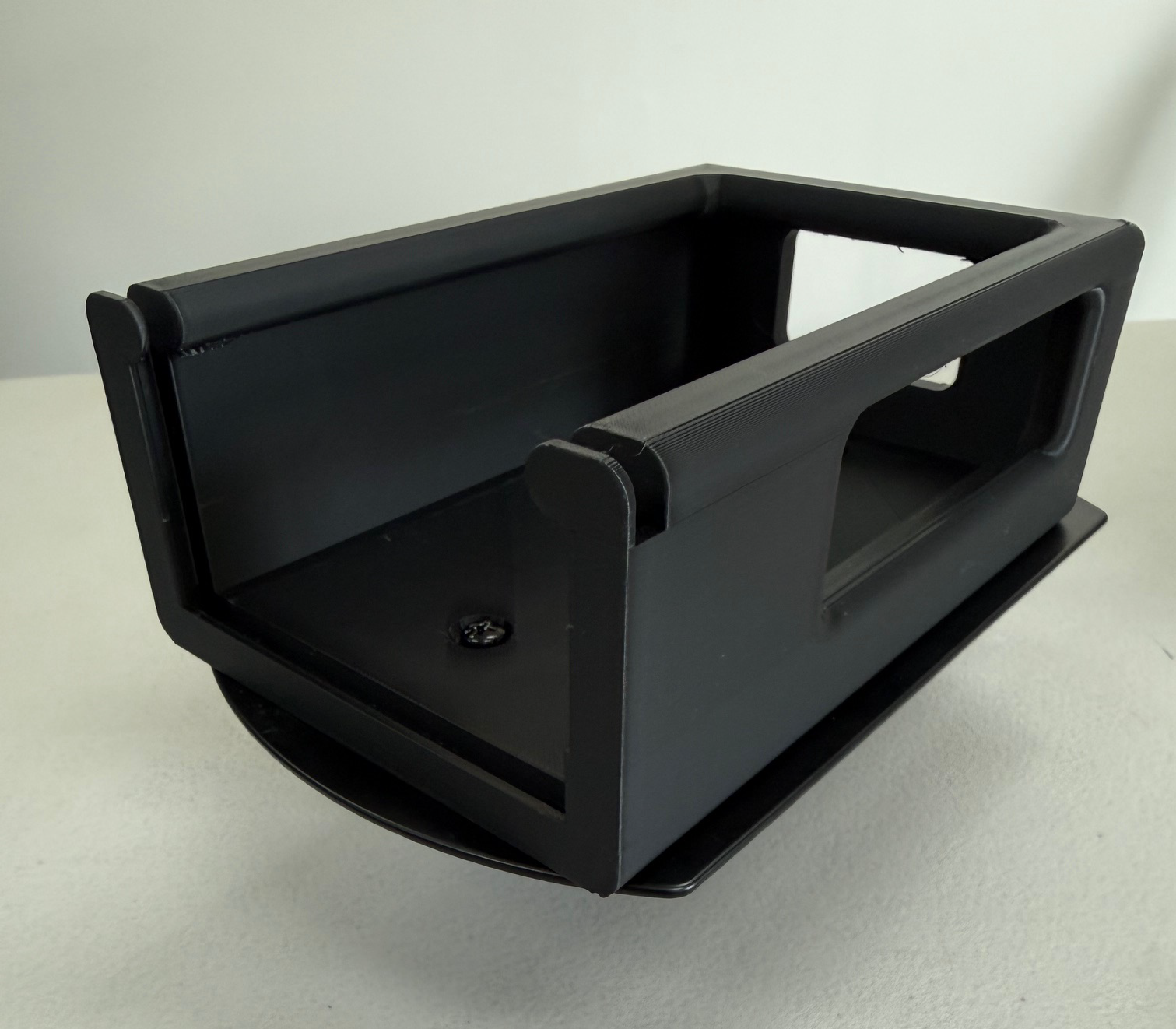

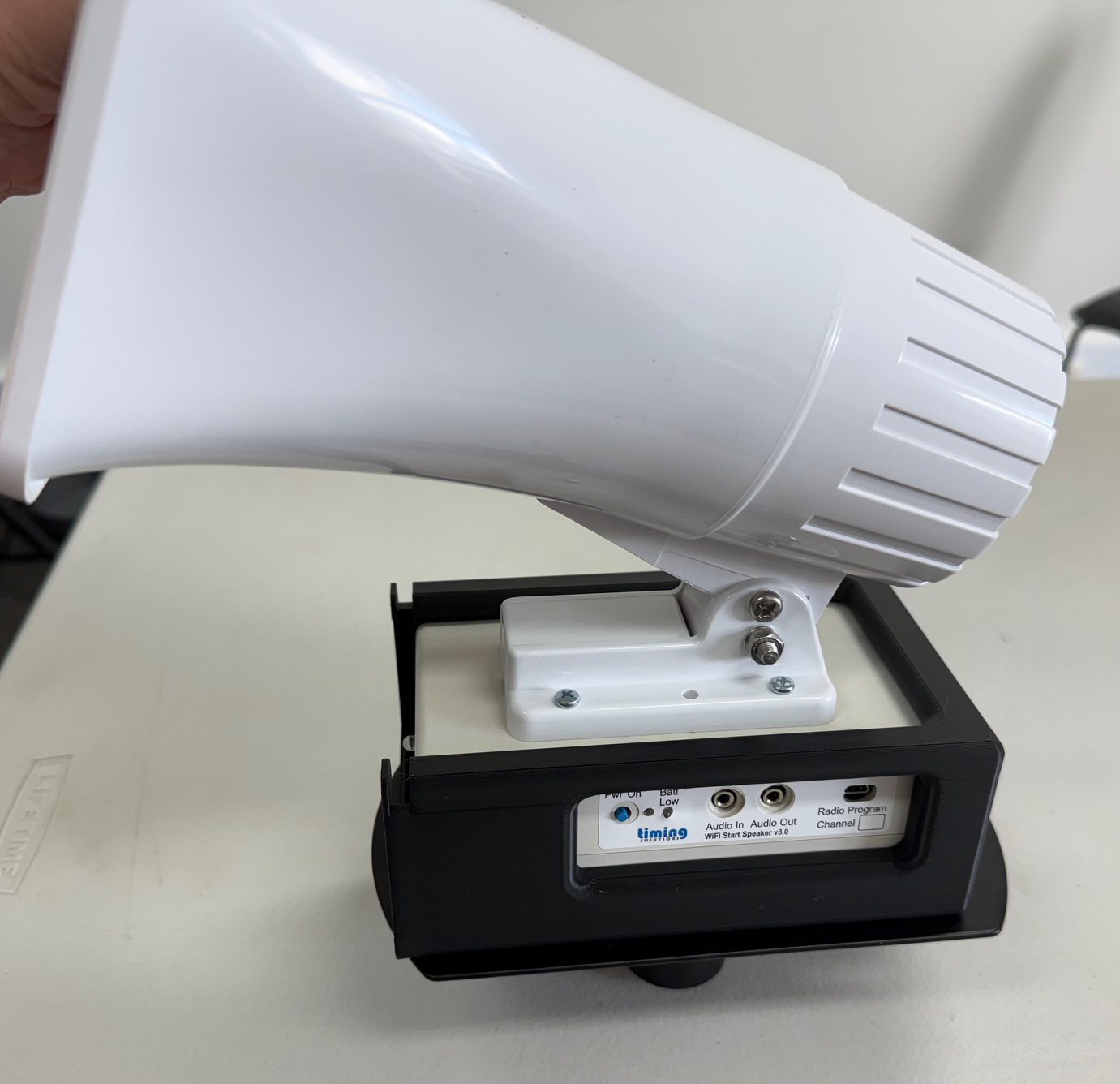

Slide the speaker into the plastic mount (be careful of the blue power button as you slide it in)

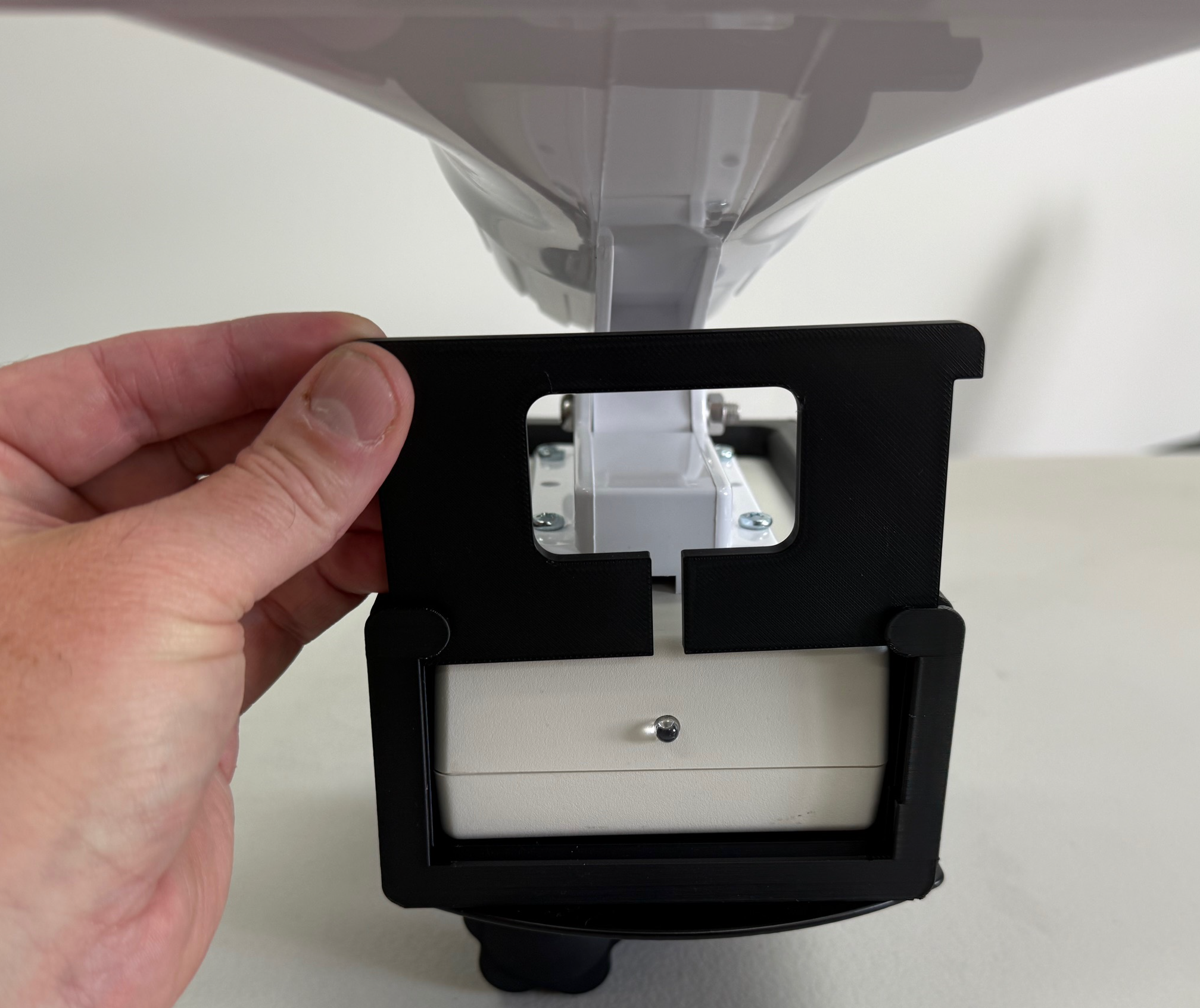

Drop the front facing plate down into the available slots. This will hold your speaker in place. You may need to tile the horn upwards in order to make enough room

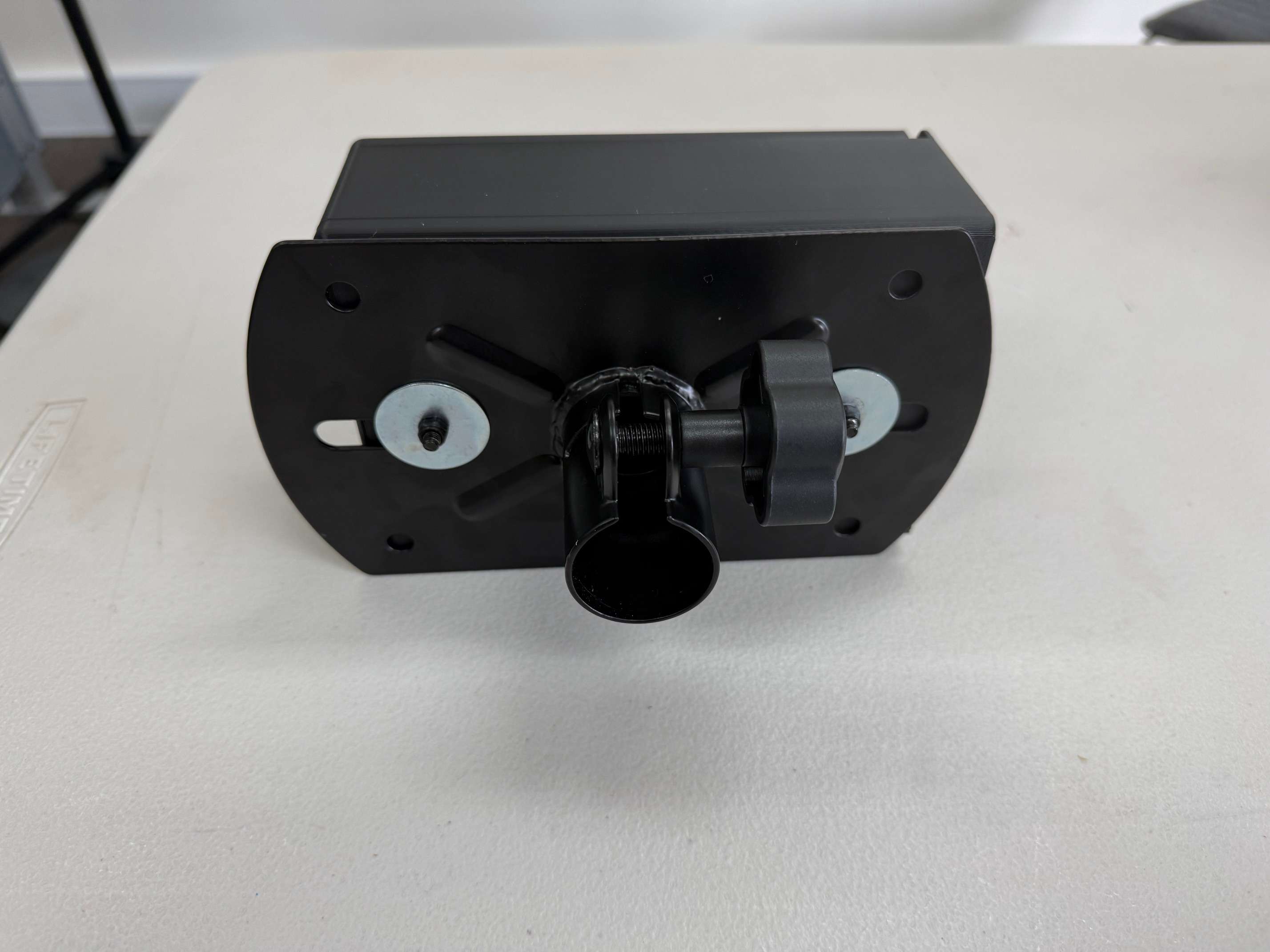

The speaker mount will secure to a standard speaker stand / tripod
